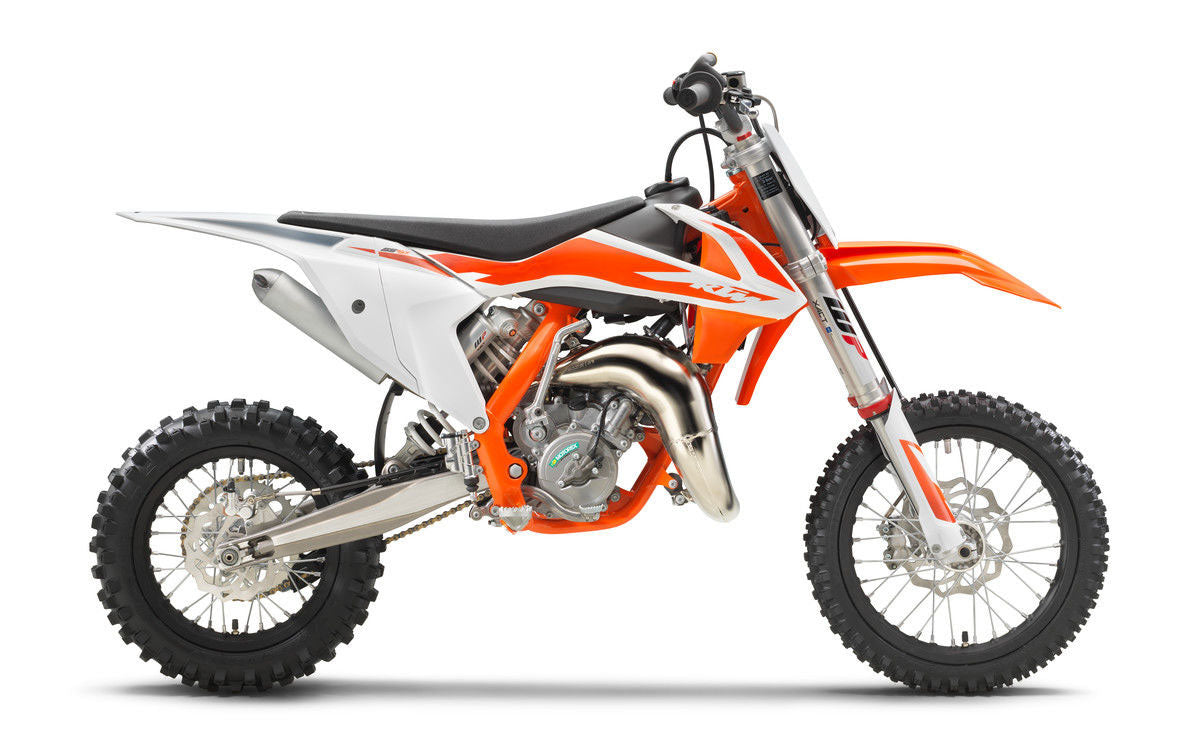

KTM 65 SX 2020

The KTM 65 SX is a fully-fledged race machine for young pilots aged between 8 and 12 years. This little flyer features the latest WP XACT front forks with revolutionary AER technology, ultra-cool graphics and a power delivery that sets the benchmark in its class. Like its larger counterparts, the KTM 65 SX has READY TO RACE ride dynamics, quality equipment and superior craftsmanship, providing winning performance to young competitors.

The KTM 65 SX is a genuine racing bike for young riders who want to move to the next level. This bike is setting standards in terms of power, performance, equipment and workmanship. The KTM 65 SX is equipped as standard with the advanced WP XACT 35 mm fork with AER technology and other top-quality features. The ultra-cool graphics round off the racing profile. Just like its bigger brothers, the KTM 65 SX is READY TO RACE.

Highlights
 NEW graphics to match the full-sized SX range and give a READY TO RACE appearance.
 Reworked ignition curve for improved performance.
 NEW alternative needle included in the by-pack for fine tuning options for different tacks and
conditions.
 WP XACT 35 mm air-sprung front fork is incredibly light and makes adjustments for rider
size and track conditions easy.
 Sleek bodywork that provides excellent ergonomics for the ultimate in control and comfort.
 The advanced frame is made of lightweight, high strength chromium molybdenum steel and
offers superb handling and precise cornering.
 The KTM 65 SX benefits from cutting-edge 2-stroke technology and an easy to shift 6-speed
transmission with a hydraulic clutch.
 A WP XACT monoshock with PDS (Progressive Damping System) technology guarantees
optimum damping characteristics and outstanding stability.
 The shock offers adjustable compression and rebound so the rear suspension can be set up
precisely for the rider and track in no time.
 The KTM 65 SX is fitted front and rear with massive four-piston calipers that grip lightweight
Wave brake discs.
 Like the big KTM factory racers, the KTM 65 SX has super lightweight, black anodized,
aluminum rims providing the highest strength and durability.
 MAXXIS knobby tires provide superb grip in any terrain.

Engine Type: Single Cylinder, 2-Stroke
Displacement: 64.9 cc
Bore / Stroke: 45.0 / 40.8 mm
Starter: Kickstarter
Transmission: 6 Gears
Fuel System: Mikuni VM 24
Lubrication: Premix 60:1
Pr imary Ratio: 23:75
Final Drive: 14:48
Cooling: Liquid Cooling
Clutch: Wet Multi-Disc Clutch, Formula Hydraulics
Ignition: AET Digital
Frame: Central Tube Frame, Chrome Molybdenum
Subframe: Aluminum
Handlebar: Aluminum Ø 22 mm
Front Suspension: WP XACT USD Fork, Ø 35 mm
Rear Suspension: WP XACT Monoshock
Suspension Travel Front/Rear: 215 mm / 8.5 in; 270 mm / 10.6 in
Front/Rear Brakes: Disc Brake 198 mm / 160 mm
Front/Rear Rims: 1.60 x 14” / 1.60 x 12”
Front/Rear Tires: 60/100-14” / 80/100-12”
Chain: 1/2 x 1/4 in
Silencer: Aluminum
Steering Head Angle: 25.5º
Triple Clamp Offset: 22 mm
Wheelbase: 1,137 mm ± 10 mm / 44.8 in ± 0.4 in
Ground Clearance: 280 mm / 11 in
Seat Height: 750 mm / 29.5 in
Tank Capacity, Approx: 3.5 L / 0.92 gal
Weight (without fuel), Approx: 53 kg / 116.9 lbs
